Imported acrylic hollow design; high system detection rate, good stability, strong anti-interference, expandable to EM + RFID dual system; with MQTT, CAN Internet of Things protocol standards, future customers will not replace existing anti-theft hardware On the basis of seamless connection with the intelligent library IoT management platform, the intelligent hardware management and control of the intelligent IoT platform (online status, fault diagnosis, remote maintenance, upgrade, etc.) and big data analysis; this product should be widely used in secret units, Scientific research institutions, intelligent libraries, asset management departments, retail experience stores and other places are now exported to more than many countries.

Features:

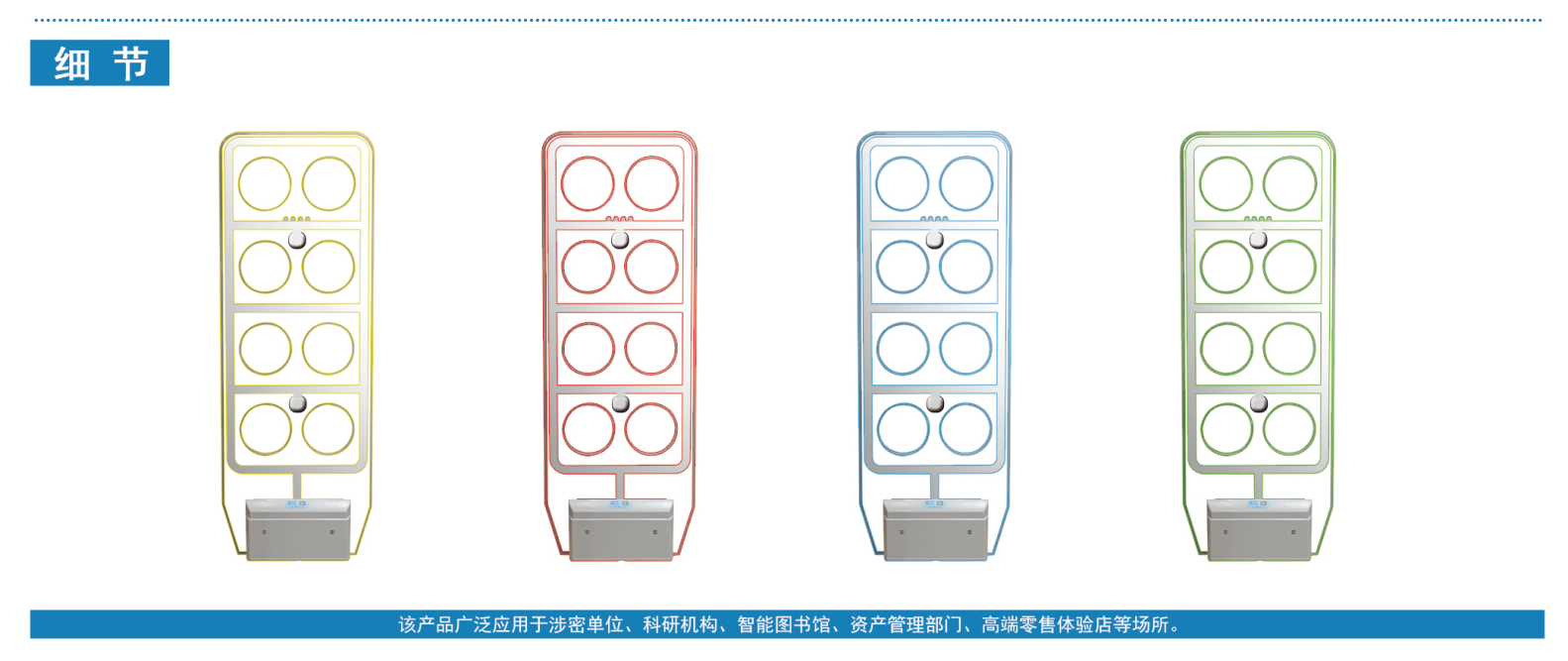

1. Design Concept: Eight-hole acrylic hollow design, meaning wealth and reunion;
2. Detection method:

The system is divided into transmitting (TX) and receiving (RX) antennas, the alarm is in the channel, and there is no induction outside the channel;

3. Anti-interference ability:
EM-V8: has strong anti-interference ability;
4. Stability: Using digital-DMPD (Dynamic Multi-Phase Detection) technology, the system is more stable;
5. Linkage: The system provides reserved interfaces for linkage with gates, monitoring probes, and big data analysis and display platforms;

6. Statistics function (optional):
(1) The host displays the passenger flow statistics system for the day (the sum of passenger flow in and flow out);

(2) Built-in LED accumulative system for passenger flow in and out of the antenna;
(3) External large screen displays the number of visitors flow in, the number of visitors flow out, the total number of people, the number of alarms, and the status of book borrowing and other functions;
(2) The PC can realize the functions of the manager checking the statistics of each floor, each channel access and alarm number in the local area network, and accumulating the statistics of total access, total number of alarms, and number of people in the library;

7. The system supports the startup of infrared controls. When the reader is sensed to pass, detection is started, and the system is in a standby state when no one is passing, to save energy and reduce the possibility of false alarms.

8. Scalability:

(1) LINUX data control server, which saves the data of passenger flow, alarm times, system faults, system environment and other data of each channel offline in real time, facilitating offline and online PC-side data uploading and analysis; power-off system with automatic saving function; (optional configuration )
(2) The system has the MQTT and CAN Internet of Things protocol standards, with embedded passenger flow in and out probes. In the future, customers will seamlessly dock the intelligent library IoT management platform without replacing the existing anti-theft hardware, and realize the intelligent hardware of the intelligent IoT platform. Management (online status, fault diagnosis, remote maintenance, upgrade, etc.) and big data analysis;
(3) Built-in RFID antenna module, which is convenient for upgrading to EM + RFID dual system without replacing the EM antenna in the future; (optional)

9. Safety Certification: CE certification of human body without harm, inspection by the Ministry of Public Security of China;
10. Compatibility: compatible with various specifications magnetic strip at the same frequency at home and abroad。

Technical Parameters:

◆ Working frequency: 1KHZ

◆ Material: Pure imported acrylic

◆ Outline size: 59 * 2.5 * 160cm

◆ Detection range:

EM-V8 / V8S: height: 5-175cm, width: 75-100cm

MONO-V8D: height ≥175cm, detection width in the magnetic stripe channel ≥100cm, single-sided detection width ≥45cm;

◆ Alarm method: sound and light alarm

◆ Input voltage: 220V / AC, machine output power: 35W
