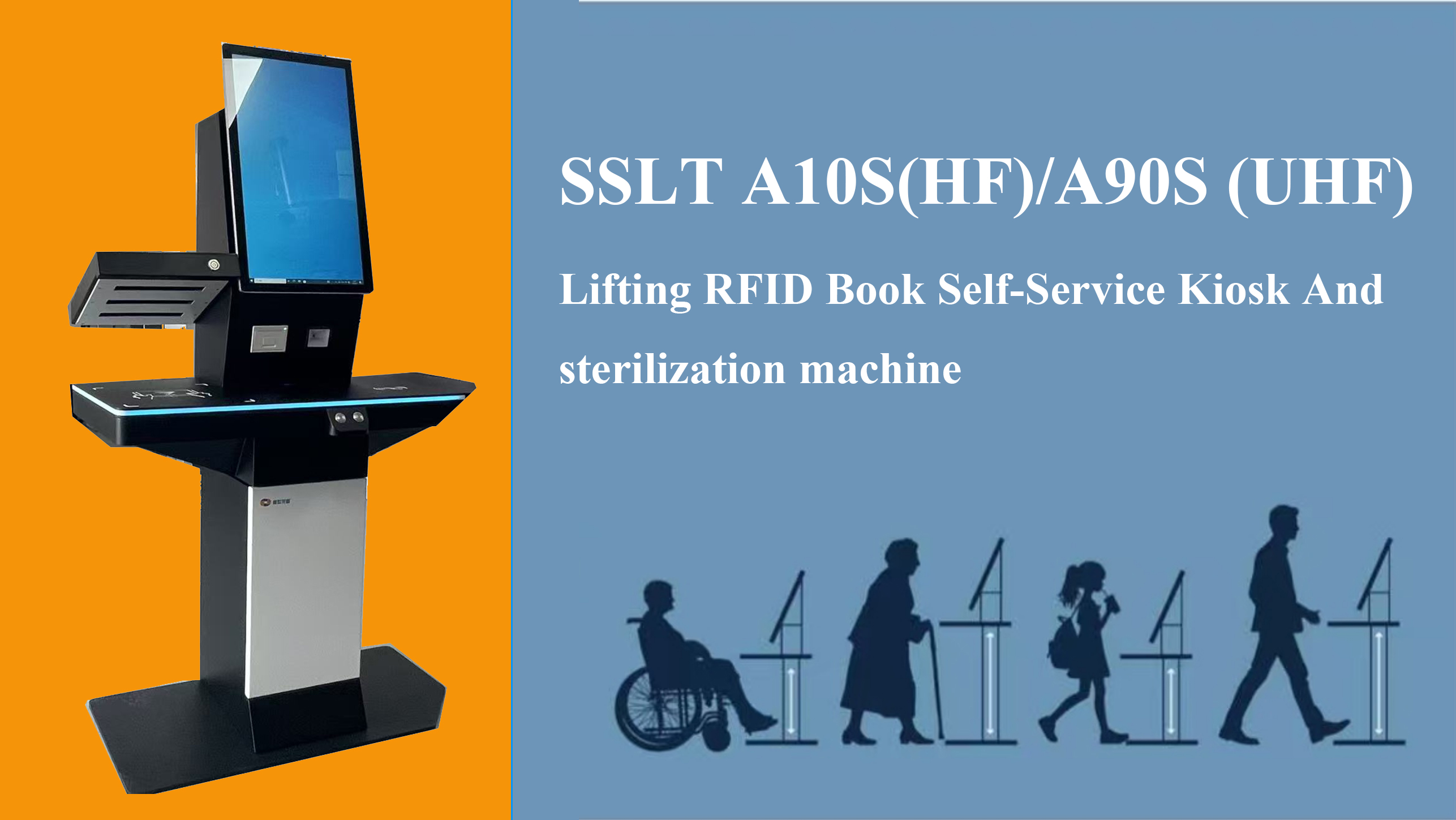

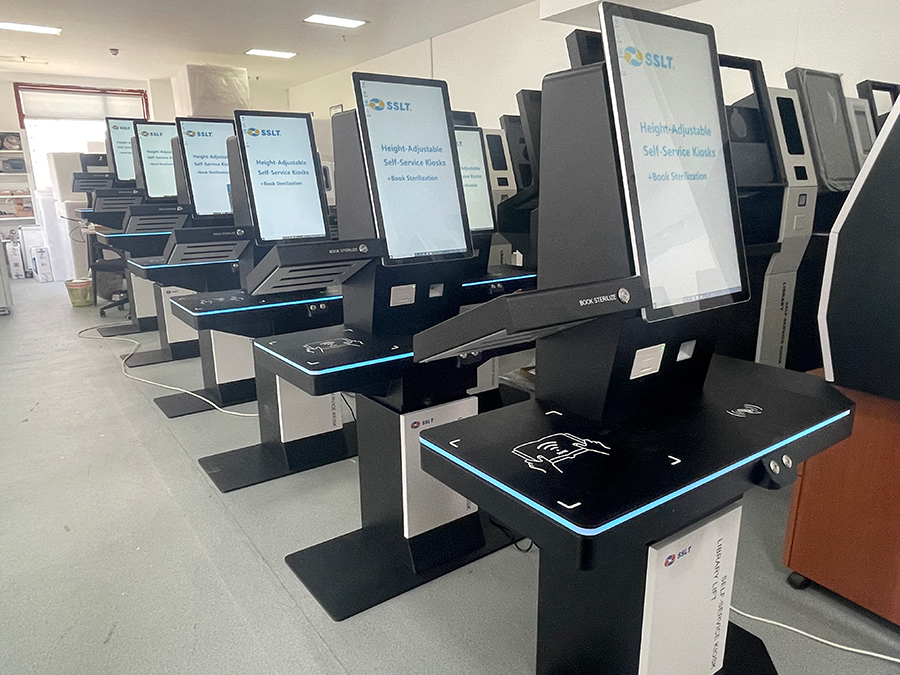

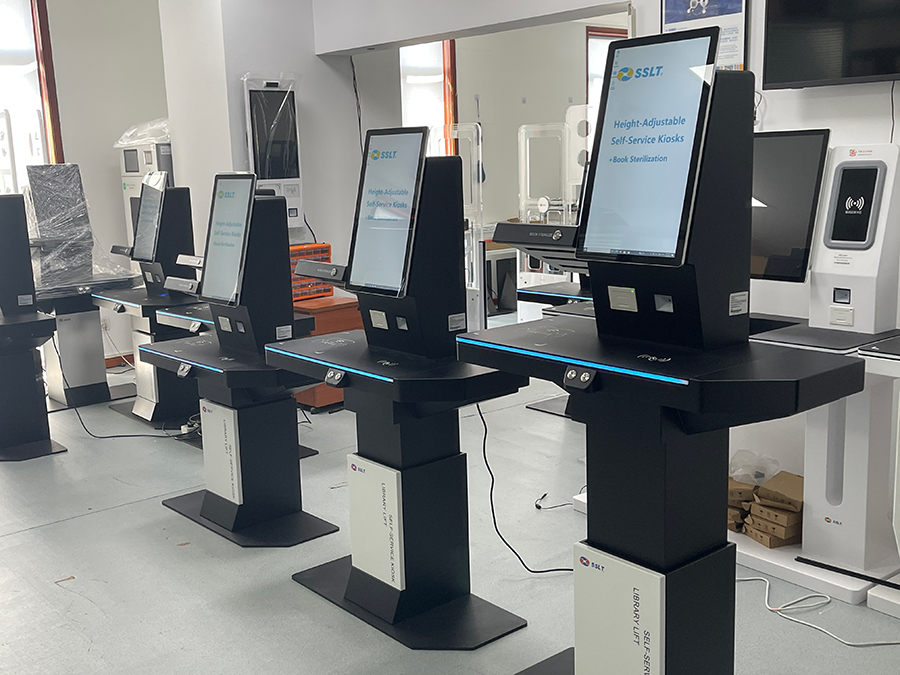

SSLT HF A10S/UHF A90S lifting RFID book self-service Kiosk and sterilization machine not only has book borrowing, inquiry, renewal, book sterilization functions, but also children, adults, the elderly, the disabled and other reader groups can be lifted according to their height through the button on the workbench. At the same time, it can be upgraded to (UHF+HF) RFID hybrid self-service lifting and Kiosk machine according to the on-site needs of the library.

Functional parameters:

1, with self-help book borrowing and returning, inquiry, renewal function.

2, the system has the book sterilization function, sterilization function readers can choose whether to start sterilization according to their own wishes.

3, the system default sterilization 5 seconds, with three low-level ultraviolet sterilization safety lights.

4, children, adults, the elderly, the disabled and other reader groups can be raised and lowered according to their height by pressing the button on the workbench.

5, optional library card, ID card, e-reading card, face recognition and other ways to borrow and return; You can replace and upgrade on-site modules without replacing the self-service machines as required.

5, the system is compatible with various specifications of books at home and abroad, and has the function of reading and writing multiple books quickly.

6. You can borrow and return circulation materials such as printed materials and optical discs in the library.

7. The device interface reserves a free place to play library pictures or video files, which is convenient for the library to carry out humanized interactive publicity.

8. Operating system: Windows.

9, equipment peripheral atmosphere light, fit with the overall environment, guide the user equipment status, equipment atmosphere light can be selected according to user requirements of different colors.

10. With remote control function, it is convenient for the library to provide intelligent services of remote control, data analysis and data decision-making when upgrading the intelligent operation service of the whole scene.

11, equipment reservation expansion module, can be expanded to (UHF+HF) RFID hybrid book self-service loan and return machine according to the needs of the field;

12, the equipment adopts high quality cold rolled steel plate, car painting process.

13. Book borrowing and returning ability: ≥5 books/time.

14, products through CE, ROHS, CNAS and other international certification. Material, process, material, structure, performance, safety, etc. fully meet international standards.

15, the product is standard with library card reader, two-dimensional code reader, printer, optional face recognition module, ID card module, letter of credit module.

Technical parameters:

1, model selection:

A10:13.56MHZ high frequency RFID; A90:925MHZ UHF RFID;

A10S: high-frequency RFID+ sterilization; A90S: UHF RFID+ sterilization;

A10SF: high-frequency RFID+ sterilization + face recognition; A90SF: UHF RFID+ sterilization + face recognition;

A10U: High frequency RFID+ UHF RFID loan and return;

2, response speed: not less than 8 tags per second;

3, communication interface: USB or RS232, RJ45;

4, read and write distance ≤ 250mm;

5. Support data exchange with third-party ERP database;

6, power supply requirements: AC200V, 50Hz;

7, power consumption: 300W;

8, built-in bar code reader, easy to use bar code and rfid;

9, the overall size of the equipment:

Increase size (L * W * H) : 895mm*400mm*1720mm

Reduce the size (L * W * H) : 895mm*400mm*1420mm

10, platform height: rise to the highest end: 100CM from the ground;

Descend to the lowest level: 70CM from the ground;

11. Lift parameters:

(1) No-load rising speed 10mms, with load speed 7-8mms

(2) Maximum load 120 kg

(3) Travel 300mm

(4) Noise value 30-35dB
