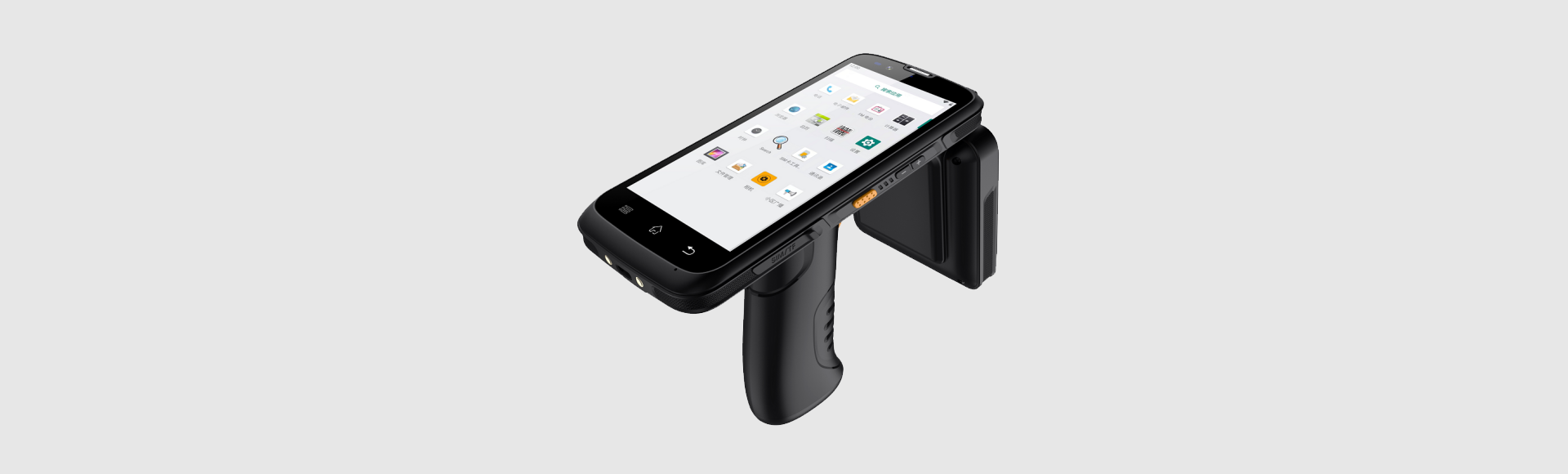

P930 High performance UHF smart handheld terminal, integrated RF dedicated read and write chip R2000 as the engine,  with better sensitivity, help to achieve more accurate, longer distance,  faster RFID tag acquisition. Using Android9.0 operating system, equipped with high-performance octa-core processor, with more than 10000mAh battery life, including high-frequency/UHF label inventory,  one-dimensional code two-dimensional code recognition, with Bluetooth, WIFI function
Performance parameters:
Eight core (standard)
CPU Cortex-A53 2.0GHz octa-core
RAM+ROM 3GB +32GB
Extended Memory The MicroSD (TF) card can be extended up to 128 GB
Operating system Android 9.0; Support Soti MobiControl, SafeUEM, etc
Equipment parameter
The overall dimensions are 179 mm x 80.0 mm x 17.2 mm
The weight of the machine is 654 g
5.0-inch display, IPS FHD 1280 x 720/5.72-inch resolution: 1440 x 720
Touch screen Corning Gorilla Glass with multi-touch support for glove or wet hand operation
Battery capacity Rechargeable lithium polymer battery 10000 mAh
Standby time > 500 hours
Working time > 12 hours (depending on usage and network environment)
Charging time 3-4 hours (using standard power adapter and data cable)
Expansion card slot 1 SIM card slot, 1 SIM or TF card slot, PSAM card slot (optional)
Communication interface USB 2.0 Type-C, OTG,
Audio speakers, 2 microphones
Keyboard 5 main keyboard, 1 power key, 2 scan keys, 2 volume keys
Sensors Gravity sensors, distance sensors
Data acquisition
Optional: Front 5 million camera Standard:
RFID UHF
Operating frequency (860-960 MHz customized frequency band)
Chinese frequency 920-925 MHz
Us frequency 902-928 MHz
European frequency 865-868 MHz (ETSI EN 302 208)
Other Frequencies Other multinational frequency standards (customizable)
Engine CM2000-1, based on Impinj Indy R2000
Protocol standard EPC C1 GEN2 / ISO18000-6C
Antenna parameters Linearly polarized antenna (1.8dBi)/Circularly polarized antenna (4dBi) Antenna parameters linearly polarized antenna (1.8 DBI)/Circularly polarized antenna (4DBI)
Power 1 W (30dBm, support +5 dBm ~ +30 dBm adjustment)
Optional 2W (33dBm, for LatinAmerica, etc.)
Reading distance > 18 m (circular polarization, indoor);  > 12 m (circular polarization, outdoor open environment, Impinj MR6 label);  > 15 m (linear polarization, indoor);  > 5 m (line polarization, outdoor open environment)
Group read rate up to 200 tags/s (circular polarization)
* Read distance and group read rate are related to the actual environment
NFC
The Operating frequency is 13.56MHz
Barcode collection (optional)
One-dimensional scanning engine Zebra: SE965;  Honeywell: N4313
One-dimensional bar code UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,  Codabar, MSI, RSS etc
Two-dimensional scanning engine Zebra: SE4710 / SE4750 / SE4750MR;  Honeywell: N6603
Support 2D barcode types PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec,  MaxiCode;  Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc
