RFID ceiling antenna UM99

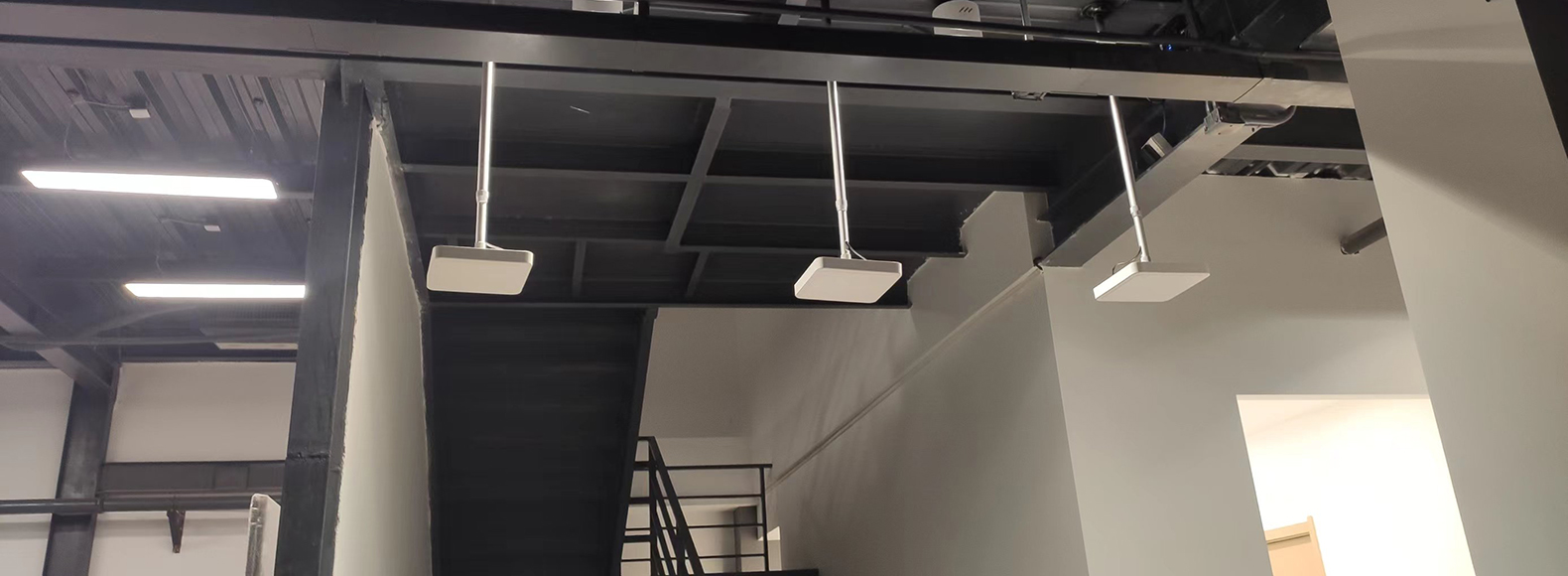

UM99 RFID ceiling antenna can be mounted on the steel frame structure or pillar through its own bracket or user-supplied bracket, and connected to the reader through the coaxial line. The antenna can be mounted horizontally or vertically, depending on the mounting orientation of the bracket, and the Angle of the antenna can be adjusted according to the actual situation after installation.
Product functions and features
Electrical performance: Universal antenna for UHF band RFID applications with high gain, low standing wave and other characteristics.
Mechanical properties: beautiful and compact appearance, waterproof ring and silicone double waterproof design, shell with reinforcement design, suitable for all kinds of harsh environment.
Main uses and scope of application
The UM966 antenna can be easily used in RFID applications in the UHF band, such as secret units, access control, warehousing, logistics, and retail.
Performance index
Frequency range: 902MHz to 928MHz
Benefit: >9dBic
H-plane HPBW: 70°
E plane HPBW: 70°
Polarization: circular polarization
Relative humidity: 5% ~ 95%
Connector type: N-type female head
Mechanical index
Size: 258mm x 258mm x 36mm
Materials: Engineering plastic ASA, aluminum
Color: milky white
