U4 Security Gate
U4 RFID security door can insert advertisements on both sides, with two modes of three-dimensional direction reading of the label, offline and online, and optional passenger flow statistics.
Functional features:
1, the system can be optional person-time accumulation system;
2, linkage: can be linked with access control, monitoring system management;
3, physical properties: both sides of the ABS material, embedded acrylic plate, can replace the billboard;
4, compatibility: compatible with different manufacturers of RFID chips
Technical features:
* Frequency: 920 ~ 925MHz
* Built-in antenna: 8DB
* Technical standard: ISO 18000-6C
* Anti-theft: AFI and EAS anti-theft
* Working mode: Support offline and online working mode
* Alarm indication: audible and visual alarm
* Communication interface: USB, RS232, RJ45
* Input voltage: 220VAC ± 10% 50Hz
* Rated power consumption: ≤20W
* Detection range: height: 175cm, width (single side) : 200-300cm;

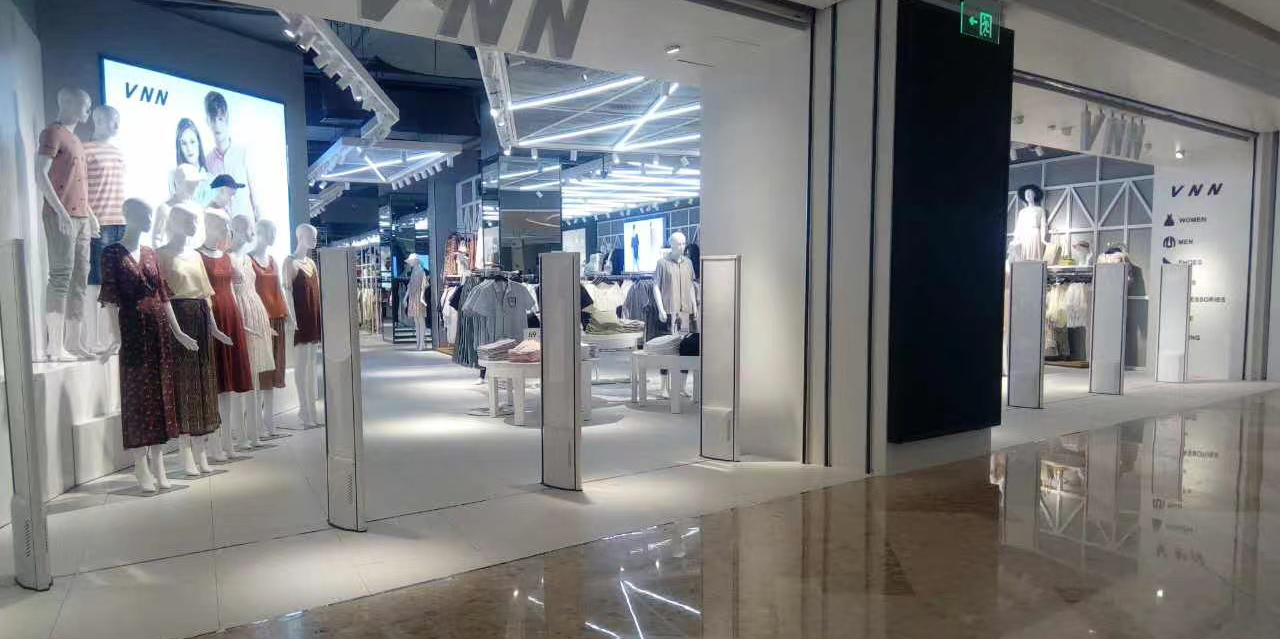

Application scope: secret units, asset management departments, experience stores, large chain clothing stores and other places.
