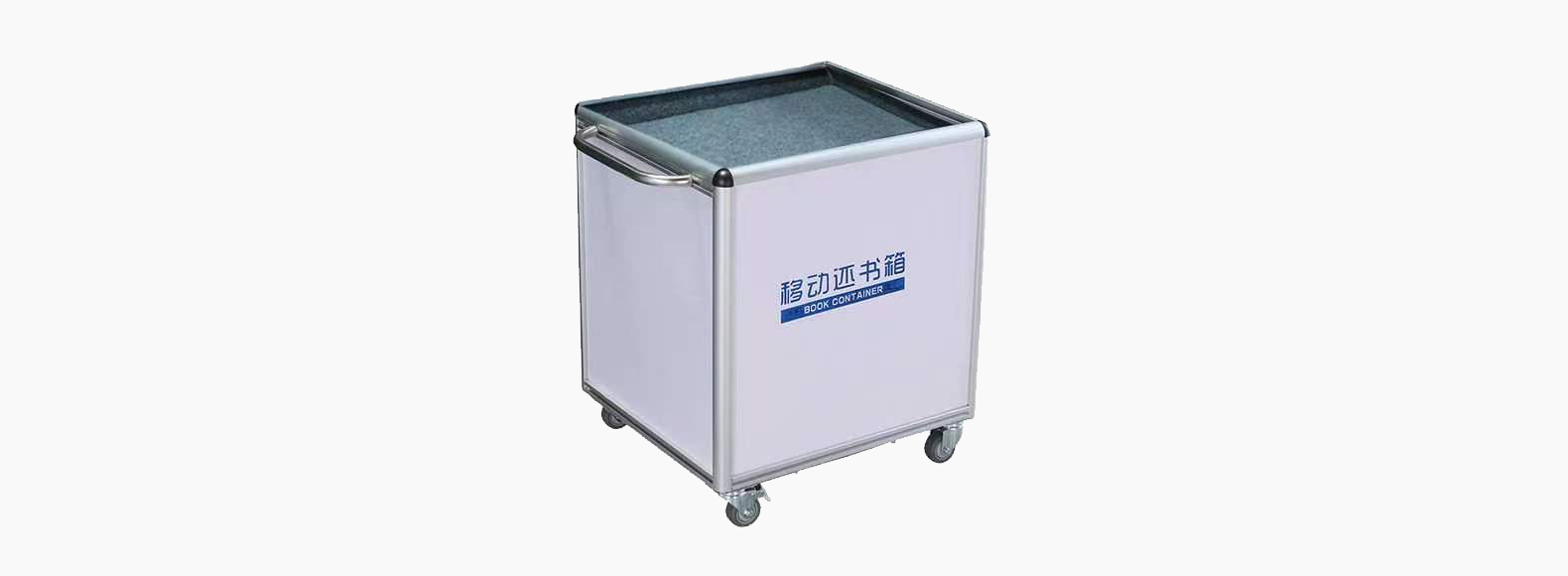

HB10 book drop beautiful appearance, stable structure, using engineering, mechanical principles of design, can be suitable for different environments. Large capacity, internal lifting structure, automatic lifting according to the load, effectively reduce the impact of the book slide, reduce book damage.
First, functional parameters:
1. Material process: profile + plate + screen + fiber
2. Novel shape, beautiful appearance, can be easily integrated into the library furniture facilities and library equipment environment
3. The structure is stable, the first two wheels are oriented, and the last two wheels are free to steer, which is convenient for load driving and steering.
4. Capacity: not less than 150 books.
5. The laminate comes with load-bearing depth design, and the surface of the laminate is made of solid wood or high-density board.
6. Turnover box is automatic lifting type, with pulley, easy to move and replace
7. Wheels: The outer edge material is plastic super quiet
8. Each bearing capacity more than 100kg
9. The pulley can be locked to prevent inadvertent push.
10. The overall design is not easy to climb and prevents toppling.
Second, technical parameters:
1. Box size: length 700mm* width 600mm* height 800mm
2. The effective capacity of a single book return box is ≥100 books
