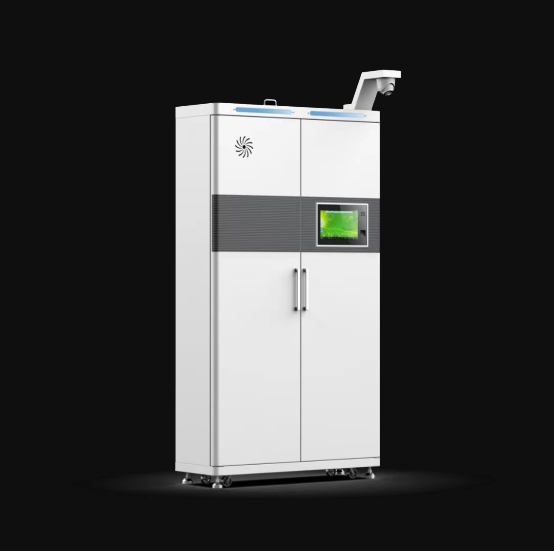

T110 RFID intelligent file box positioning cabinet is based on RFID (radio frequency identification) technology, adhesive label at the bottom of the file box, through the coordination of the file box label and the radio frequency control box of the file cabinet, determine the file on the shelf and the position, with high detection success rate, fast detection speed, stable performance, strong anti-interference ability and other characteristics. To achieve accurate positioning, monitoring, dislocation reminder, real-time inventory and other functions.

Basic parameter
1. Overall dimension: 1100mm(length)*400mm (width)* 2030mm (height)
2. Power supply 220V+10%
3, working environment temperature -10°C~50°C
4, the main material body using 1.2mm sheet metal, the whole spray
5. The label is affixed to the bottom of the file box 5mm away from the back
6, positioning accuracy accurately positioned to the file location, positioning accuracy is not less than 99.99%
7. Quantity of warehouse space There are 5 floors in a single cabinet, 22 Spaces in each floor, and 110 Spaces in the whole cabinet
8, the inventory speed of the whole cabinet inventory time <10s
9. Space width 40mm
10, RF parameter interface standard ISO 14443A/ISO15693
11. Operating frequency 13.56MHZ
12. Rf field constraint adopts close-range identification technology, which cannot be sensed from 3cm away from the laminates
13, touch all-in-one: CPU RK3288 main frequency 1.8Ghz (Max), operating system Android7.1, DDR 2GB, storage 8GB, screen size 10.1 inches, display resolution 800*1280

14, application scenarios: enterprise files, public inspection law, archives and other intelligent management scenarios
