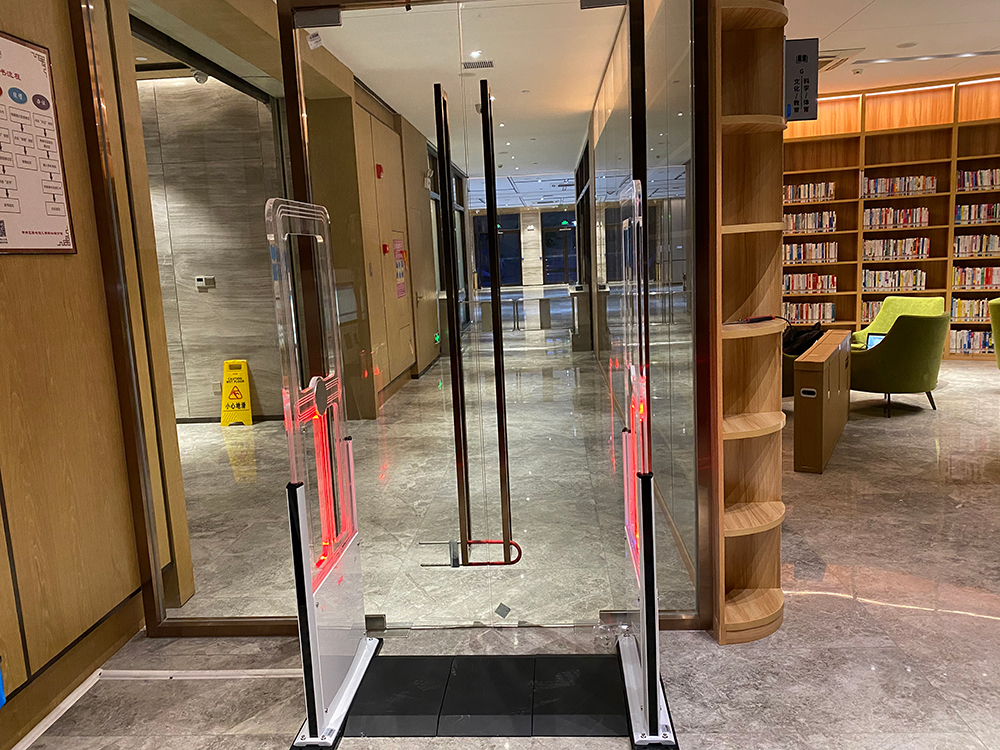

iRFID-H22 RFID security door is a new high-frequency access control system, which can quickly detect electronic tags in the three-dimensional space of the sensing area, and provide audible and visual alarm for illegal asset tags. Widely used in library, reading room, archives, smart retail and other fields.

Product characteristics
1, the system adopts master and deputy design, high integration, user installation, debugging and development more simple;
2, single system supports multi-channel and dual-channel applications;
3, support multi-system cascade;
4, unique antenna design scheme, effectively improve the reading rate and reading distance of electronic labels, offline anti-theft alarm mode installed 90cm (can be customized H22 Plus installation 140CM);
5, rich external communication interface (USB, serial port, Ethernet, WIFI), support multi-mode access;
6, Ethernet support TCP protocol, support active notification mode and multicast search function;
7, support active and passive (mobile phone borrowing) alarm;
8, support security door interference detection and antenna fault detection;
9, support online upgrade;
10, standard with 3.5-inch display, display traffic information;
11, support the setting of fault warning light (network fault warning light and door fault warning light);
12, support the atmosphere light setting (green and blue);
13, Support ISO15693, IS0/IEC 18000-3 Mode 1 protocol standards;
14, Support EAS, AFI anti-theft mode, EAS &AFI;
15, alarm mode sound and light alarm;

16, alarm record storage capacity > 50,000
17. Storage capacity of traffic records > 2000
18, the display is standard with 3.5-inch LCD screen, showing the flow of people
19, channel width 80-140cm, 90cm recommended
20, communication interface Ethernet, USB, WIFI
21, linkage interface 4 relay output, 2 MOS output, 2 CAN
22. Power supply AC 100 ~ 240V 50 ~ 60Hz
23, maximum power consumption 25W
24, shell material acrylic, aluminum and sheet metal
25, size Appearance size: 1660*636*120mm; Base size: 636*120*16.3mm
