C1600 video people counter analysis sensor

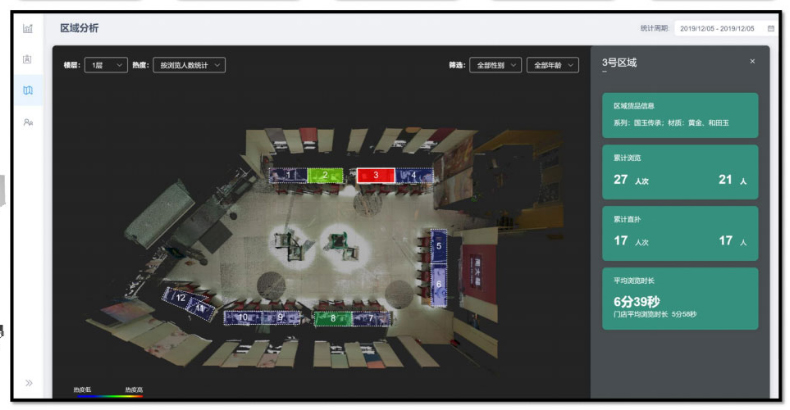

C1600 video people counter analysis sensor humanoid integral vector contour matching technology, international standard 2.1mm focal length lens; Support the installation height of 5 meters; Highly intelligent passenger flow statistics sensor, can identify eight directions of passenger flow in and out, support tilt installation, equipped with tilt compensation algorithm; Full screen complete path tracking, image acquisition, image analysis, regional hot spot distribution analysis, data transmission integrated high intelligent sensor passenger flow statistics, support PoE power supply; It can be extended to a maximum of 16 independent statistical areas, supporting breakpoint continuation; Support wandering filtering; Support front-end raw data local storage.

Technical Parameters

Lens Options :1.8mm,Standard Lens,Supporting 2.2m to 4.8m
Enclosure :Flame retardant high strength Plastic White
Enable Zones :≥1000TVL
Backlight compensation:8 Counting Zones and 8 Stay Statistics Zones
Power :Maximum 4.5Watts
Power-over-Ethernet or 24 Volts DC external
LEDs:2 tri-state (red, green)
Cabling  :CAT 5e/CAT 6e
Ethernet:Single channel 10/100Mb Ethernet
Addressing: DHCP or Static IP
Protocols :TCP/IP, DHCP
Time Synchronization:SNTP, Daytime Protocol, Proprietary
Data Delivery :HTTP, SMTP, FTP
Secure Data Delivery :HTTPS, FTPS
Software Upgrade :The configuration interface with
firmware upgrade port
