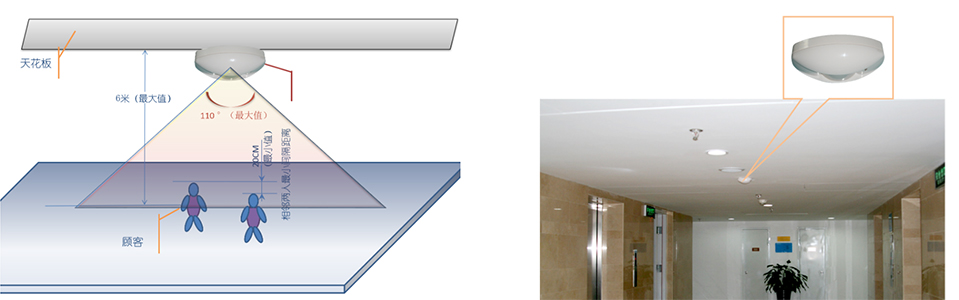

C80 two-way thermal response counter function description: wireless transmission, battery power, thermal response counter, can be attached to the ceiling or wall installation, can upload data to the server through the wireless network with CS60 in and out of the passenger flow statistics system to achieve statistical analysis of passenger flow.

Features:

1, in and out two-way recognition: can identify the direction of the human body in and out, when the detection of different directions of the human body, respectively with eye-catching red and blue lights to indicate.
2, imported passenger flow high-speed infrared thermal sensor, fast response speed. Only movements of endotherms over 30 kg within the target range are detected. Without any reaction to non-living organisms, carts, counters, and various items carried by people do not constitute counting.
3, wireless communication, transmission distance of 200 meters, indoor up to 80 meters. Wireless transmission frequency of 868Mhz, away from the noisy 434Mhz band, less interference, more reliable communication.
4, 3.6V lithium-ion battery can be used for more than 3 years.
5, support comprehensive fault recording and upload system, the device can be transmitted to the server in time when there are 8 types of faults such as insufficient battery and poor wireless communication.
