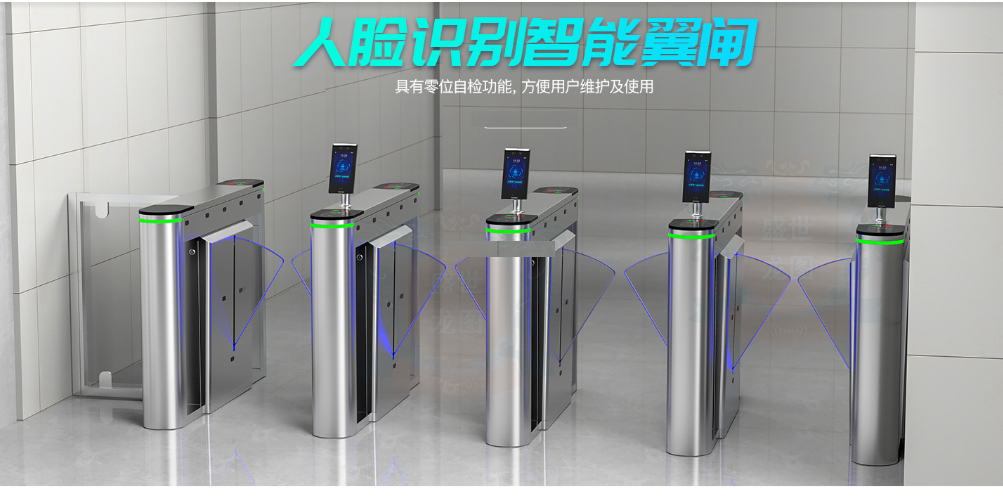

The width of the equipment is only 20CM, the shape is made of stainless steel plate stamping, beautiful and generous, rust-proof, durable, and the external use of standard electrical interface, can easily integrate the magnetic card, bar code card, ID card, IC card and other readers on the equipment, to provide civilized and orderly access to the personnel. At the same time, it can prevent illegal personnel from entering and leaving; Application scenarios: libraries, enterprises, and public security places.

Functional characteristics
1: With fault self-test and alarm prompt function, easy to maintain and use.
2: Can be connected to any control device output control signal or button or remote control, to achieve single and dual control passage.
3: Automatic reset function: every swing 90 degrees, and detect people and objects through, that is, automatic reset.
4: Light indicator: high brightness traffic light status indicator, guide traffic.
5: Fire input: can be connected with the fire alarm signal to achieve constant power drop rod normally open.
6: Alarm prompt function: illegal passage or sluice, automatic alarm prompt.
7: Adjustable speed: The speed of opening and closing of the swing arm can be adjusted in multiple stages, and the user can set it according to actual needs.
8: A new generation of industrial ARM control system, adding multi-function digital setting, encryption and reset functions.
9: anti-reverse function: in the process of swing arm reset, if the external force reverses the swing arm, the swing arm automatically starts the reverse thrust and sends an alarm, and automatically returns to zero after the external force disappears.
10: Automatic protection function: When the external force prevents the normal movement of the swing arm, and the external force is continuous, the system will automatically detect the automatic protection and enter the sleep state after 20 seconds. When the next legitimate signal input, the gate will automatically return to normal.
11: multi-stage anti-collision buffer function: when illegal passage or sluice, the brake rod buffers the corresponding Angle and starts the instant reverse thrust, and starts the alarm at the same time, which greatly reduces the mechanical damage caused by frequent or continuous collision while realizing the humanized anti-injury.
12: Unmanned duty: power off swing arm automatically open, power automatic reset (blocking passage).

Technical parameters:
1. Size: 1200*200*990MM,
2. Material: The body is made of SUS304 brushed stainless steel;
3. Channel width: ≤600mm, acrylic material;
4. Input motor: DC brushless motor;
5. Driving mode: digital mode;
6. Ambient temperature: -20℃+70℃;
7. Relative humidity: relative humidity ≤90%, no condensation
8. Switch signal input: dry contact;
9. Traffic speed: the number of passengers ≧35 people/min;
10. Swing arm: plexiglass;
11, the equipment life can reach ≥500W normal operation;
12, weight: 70Kg;
13. Use environment: semi-outdoor.
