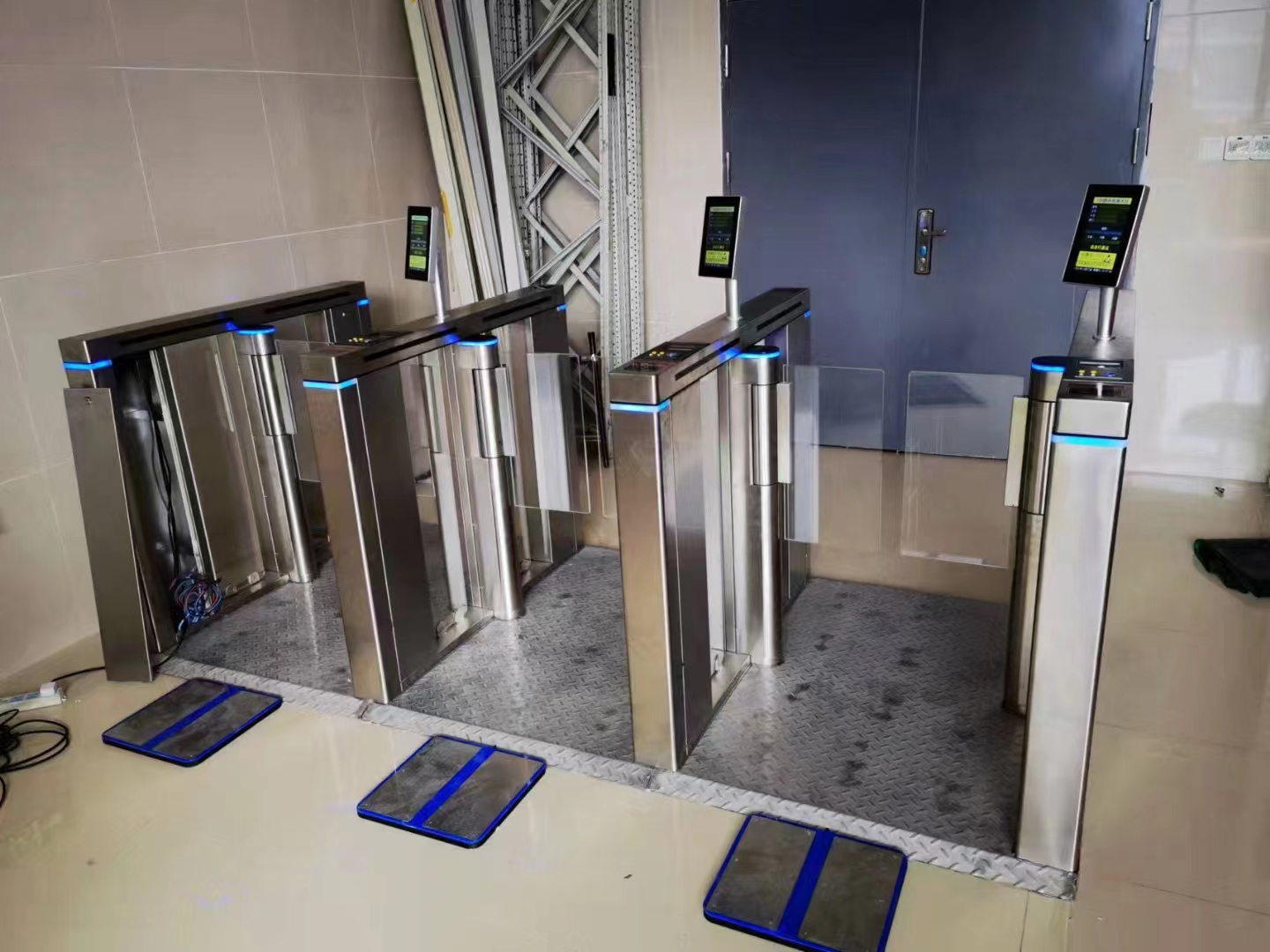

G08ESD ESD static test gate equipment width is only 12CM, is a combination of human static electricity comprehensive numerical tester, static access control equipment and computerized management software of a system.
It can ensure that operators are really prepared for correct electrostatic protection when entering the electrostatic protection area; Combined with the channel gate as the control device of the flow channel, according to the permission setting of the card, there are a variety of entry ways (hand measurement, shoe measurement, hand shoe on the same side, no detection).

Speed gate parameters
◇ Chassis material: Standard 304 stainless steel/paint
◇ Dimensions: Length 1400* Width 120* height 990mm (support size customization)
◇ Material thickness: Standard 1.2mm/1.5mm (optional)
◇ Operating voltage: AC220±10%V 50±10%HZ 100W
◇ Drive motor: 24V brushless motor (optional servo motor)
◇ Swing arm length: 350MM
◇ Channel width: 600-800 (customizable width)
◇ Baffle material: organic acrylic (color can be selected, usually transparent tape light)
◇ Traffic direction: one-way or two-way (can be set)
◇ Working environment: indoor, outdoor (shady shed)-10℃ ~ 50℃
◇ Gate opening and closing time: 1 second
◇ Speed: 30-40 people/min (normally closed) 40 people/min (normally open)
◇ Time required to enter the traffic state after power-on: 3 seconds
◇ Normal service life: more than 10 million times
◇ Automatic reset function: After opening the gate, the system will automatically lock if not passed within the specified time, and the passing time can be adjusted;
◇ Automatic reset time after failure: 10 seconds
◇ Communication interface: standard RS485 interface, distance ≤1200 meters
◇ Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width > 100ms, driving current > 10mA

ESD: Working voltage: Input AC220V output DC12V
Dimensions: 190MM*120MM*43MM
Instrument accuracy: ≦±10%
Detection speed: ≦1.5 seconds
Environmental condition
Humidity: 0%~90%
Temperature: -10C°~ 50C°
Various voice broadcast prompt functions in the test process
Factory default Settings: (test range 100KΩ--1000MΩ)
Wrist strap: 750KΩ~10MΩ
Electrostatic shoes: 750KΩ~100MΩ
The lower limit of electrostatic shoes can be set to 100 KΩ and the upper limit can be set to 35MΩ or 1000MΩ
