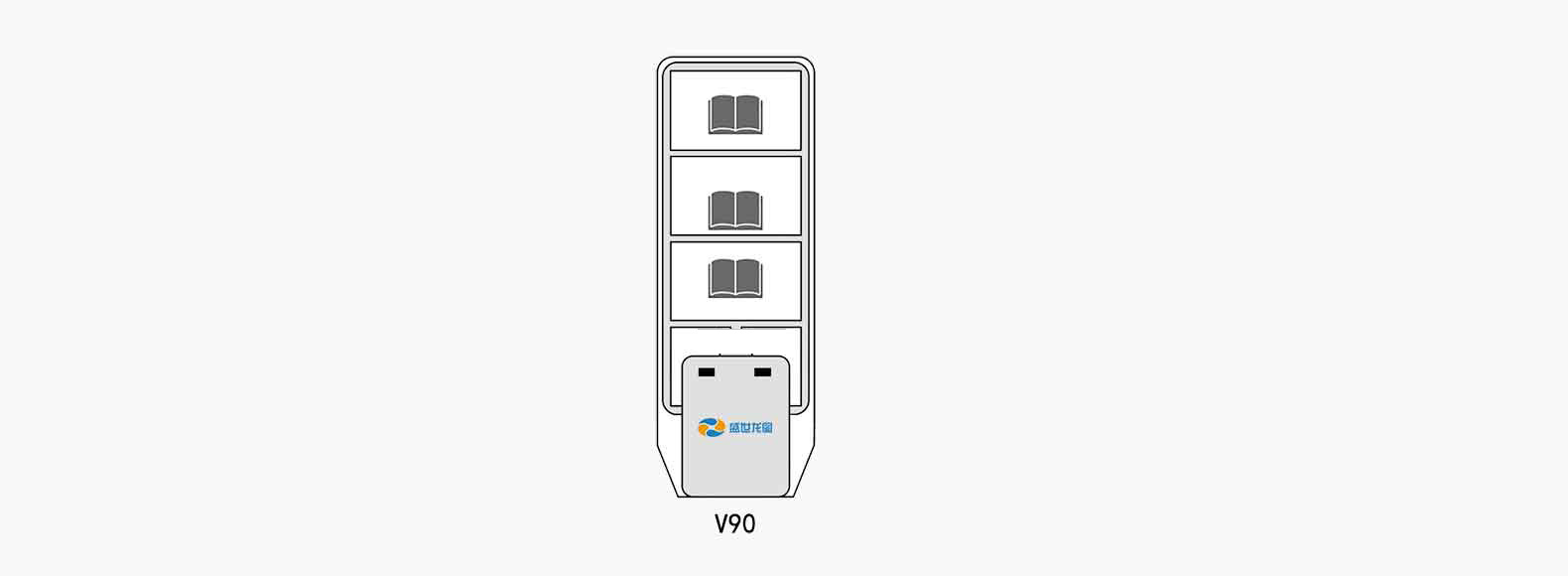

Wide door distance book anti-theft device V90
Imported acrylic book design; The system has high detection rate, good stability and strong anti-interference; The product should be widely used in smart libraries, archives, asset management departments, secret units, smart stores and other places.
Functional features:
1. Design concept: Book-shaped acrylic design, complementing the library style;
2, detection mode: The system can quickly identify the EM magnetic strip label pasted on the data and trigger the audible and visual alarm, the alarm light can be customized;
3, anti-interference ability: the system has software automatic self-test function, can effectively filter the notebook, high-power mobile phone interference problems;
4, stability: using digital -DMPD (dynamic multi-phase detection) technology, the system is more stable;
5, linkage: The system can be optional with the gate, monitoring probe, big data analysis linkage reserved interface:
(1) To realize the alarm of books that have not been processed through the corresponding book detection door, while closing the gate of the corresponding channel;
(2) To achieve the alarm image capture function, the background through the alarm node and image to obtain evidence for theft;
(3) Realize the data of alarm time and number of each channel, upload the data through the display screen or API interface for statistical analysis;
6, independence: optional separate channel independent alarm function, so that anti-theft management more intelligent;
7. Statistical function:
(1) Optional host display passenger flow statistics system on the day (regardless of entry and exit);
(2) Optional host or antenna built-in LED entry and exit passenger flow accumulation system;
(3) Optional external large screen display the number of people entering the library, the number of people leaving the library, the number of people in the library, the total number of people, the number of alarms, book borrowing and other functions;
(2) The PC in the LAN can be selected to realize the manager to view each floor, each channel access, alarm statistics, cumulative statistics of total access, total alarm times, the number of people in the library and other functions;
8, the system is equipped with infrared controls to start, when the reader is detected, start to detect, no one through the standby state, to achieve energy saving, reduce the possibility of false positives;
Technical parameters:
1. Working frequency: 1KHZ
2, production material: pure imported acrylic
3, appearance size: 180*65*2.5cm
4, detection range: single channel: height: 5-190cm, width: 100-110cm; Double channel height: 5-190cm, width: 200-220cm
5, alarm mode: sound and light alarm, different alarm colors can be customized
6, signal processing: digital -DMPD technology, DSP multiple filtering technology
7, production material: pure imported acrylic material, no deformation, no discoloration, crystal clear, strong wear resistance
8, no fault time ≥80000 hours
9, antenna power: 3.6W-5W
10, working voltage: AC:220V±20%, 50Hz
11. Output power :35W
