N35/N35M AM Anti-theft system

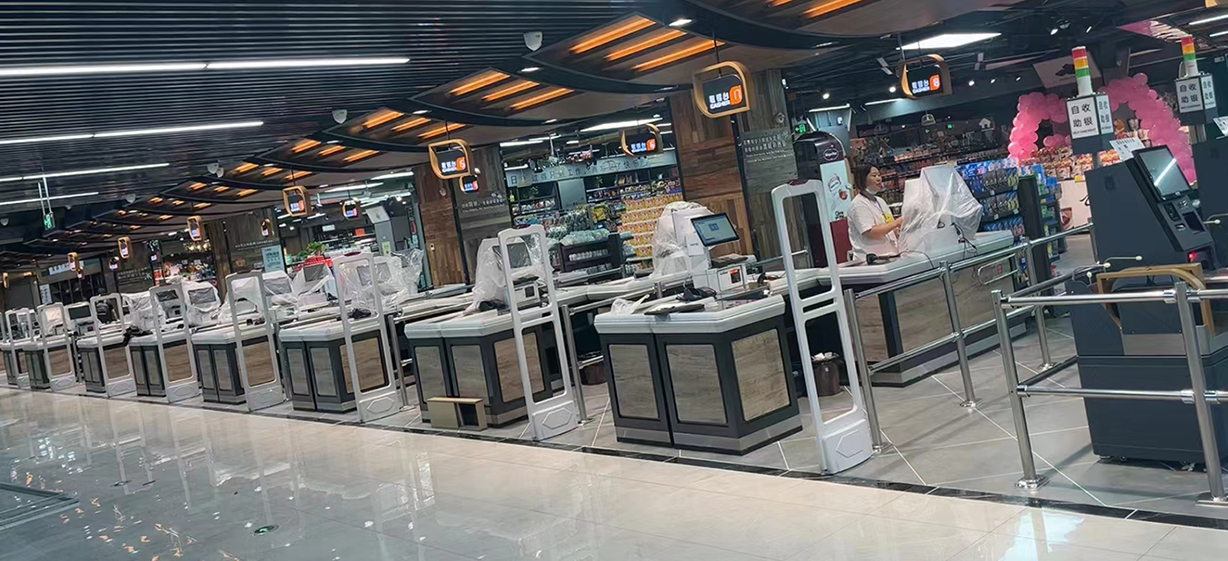

The SSLT N35/N35M series AM anti-theft system adopts reinforced aluminum alloy poles, and the bottom is made of collision resistant stainless steel material, which can be inserted into advertising screens at any time; Using high-performance DSP chips, remote control or mobile app remote debugging, the installation channel can reach 2.6 meters, suitable for use in clothing stores, supermarkets, department stores, and other stores.
Product Description:
Environmentally friendly material - reinforced aluminum alloy pole, bottom made of collision resistant stainless steel material, can be inserted into advertising images at any time
Easy to debug - N35: Use remote control for debugging, no need for connecting wires; N35M: Mobile app software debugging, motherboard comes with WIFI module, no need for connecting cables
Configuration and usage:
Main antenna: a transceiver integrated antenna with independent control function
Sub antenna: an integrated antenna with independent control function for transmitting and receiving after being connected to the host
Configuration: One main unit can carry two auxiliary units
Parameter specifications:
Product size: 1580 * 390 * 50mm Base thickness: 130mm
Host input: 220V/110VAC+10% 50/60HZ
Working frequency: 58KHz Transmission pulse width: 1.4Ms
Minimum energy consumption: 25W Power supply insurance: 2A
Packaging specifications (single unit): 1600 * 450 * 150mm
Weight: 18.5kg
Detection range (within the channel): DR soft label: 140-160CM; Hard label: 180-260CM
