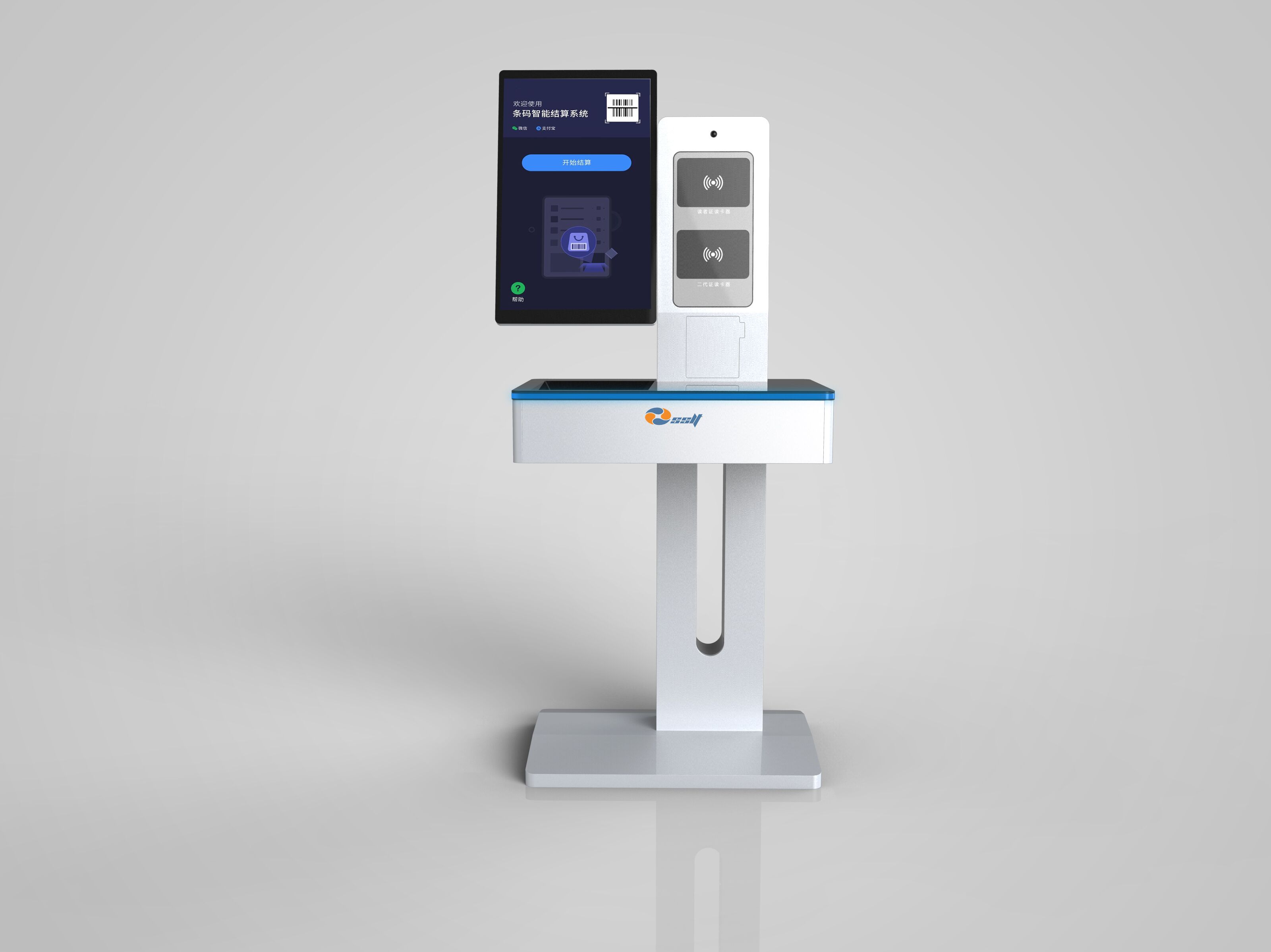

The EA80 Magnetic Stripe Self service Book Borrowing and Returning System mainly solves the problem of upgrading the traditional EM Magnetic Stripe Library to Magnetic Stripe Self service Borrowing and Returning. Readers only need to scan the book barcode to realize the book borrowing and returning function. After the book borrowing is completed, the system starts the magnetic strip demagnetization function, and when the book is returned, the magnetic strip magnetization function is started.

Functional parameters

1. The barcode scanning gun is used. After the books are placed in the designated position, the barcode scanning gun automatically reads the barcode of the books.
2. It has the functions of self-service book borrowing, returning, renewal and query, and can optionally be equipped with a face recognition borrowing module to facilitate the upgrade to face recognition self-service code binding and borrowing and returning operations.
3. The interface language has the following options: Simplified Chinese, English, etc.

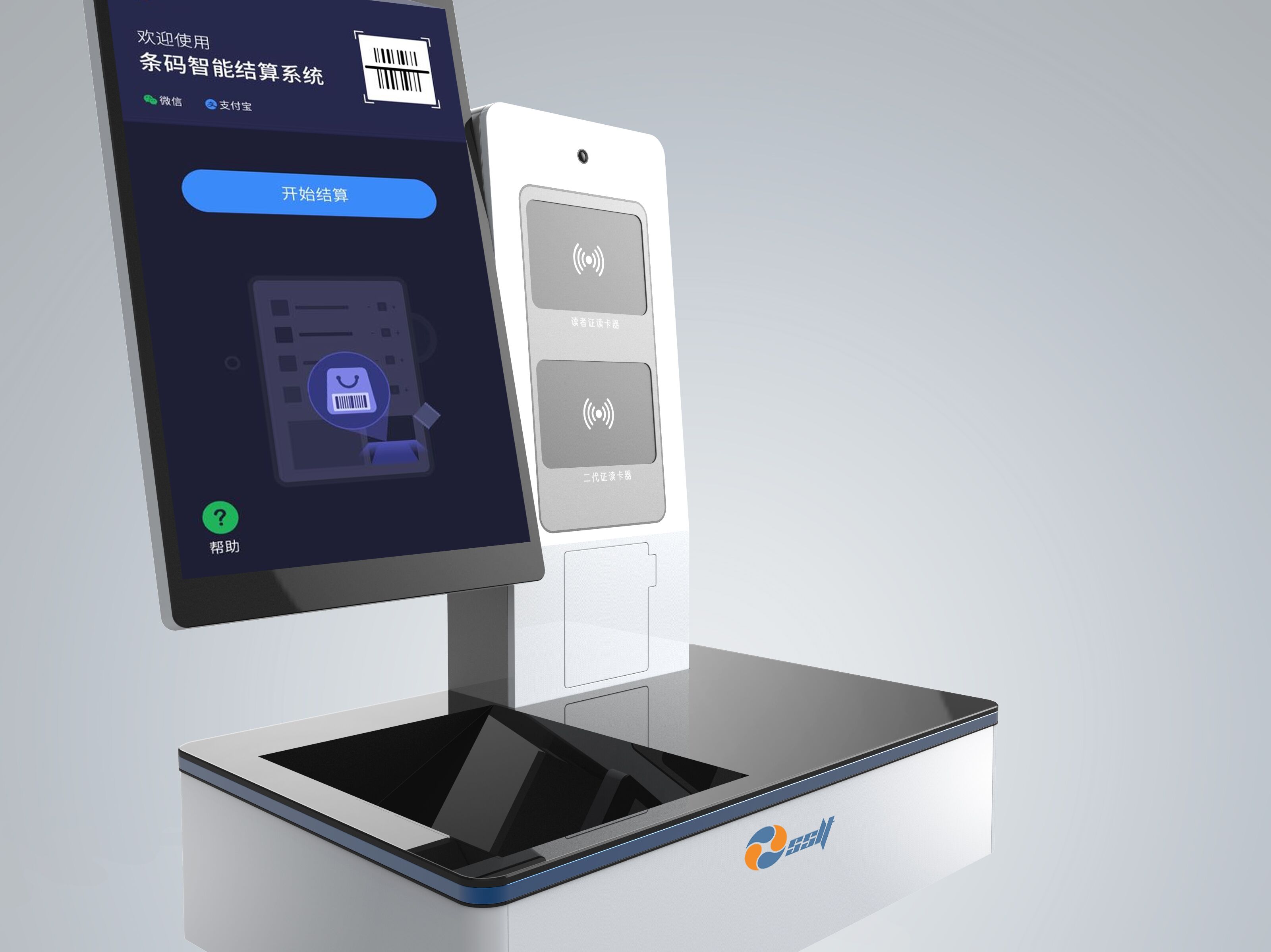

4. The equipment is equipped with its own working platform and LED light strip design, which is made of all metal materials. The overall color is classic black and white. The magnetizing and degaussing operation platform is designed with V-shaped slope and ABS materials.
5. It supports the standard SIP2 protocol and seamlessly links with the library management system.
6. It supports barcode, all-in-one card, face recognition and other forms of library cards.
7. Compatible with all kinds of composite magnetic strips at home and abroad, with fast charging and degaussing functions.
8. When borrowing or returning books, the system can automatically display the list of books borrowed from the reader's library card, which is convenient for the reader to check.
9. The system has the function of timing automatic switch on and off. After the automatic shutdown of the equipment, the system can automatically cut off the power supply of the equipment and the host, which is a potential safety hazard of useless electricity.
10. The system ensures that the books within the indicated area of the device can be read, and the books beyond the range will not be read, so as to ensure that the readers will not make mistakes when operating.
11. The system provides the automatic connection function. After the network failure is recovered, the system automatically connects to the circulation system server and recovers self-service without the assistance of librarians to connect or restart the service.
12. The system software adopts a modular design architecture. Each peripheral function module (such as membership card, ID card, face recognition module) can be flexibly loaded and enabled in the configuration program according to actual needs;

Technical parameters:

1. Main control equipment: industrial control motherboard I5, supporting 7 * 24 * 365 hours of power on, memory ≥ 8G, hard disk ≥ 256G.
2. LCD screen: 21.5 inch, new LED backlight, resolution 1920 * 1080, 1366 * 768.
3. Magnetizing and demagnetizing parts: compatible with magnetic stripes of various specifications.
4. Barcode gun: the barcode scanning gun automatically reads the barcode of the book after the book is placed in the designated position, and the barcode can be recognized: UPC/EAN, code 128, code 39, code 93, code 11, and codebar.
5. Card reader: It can identify the campus card and ID card.
6. Operating system: Windows 7 or Windows 10.
7. Software interface: support seamless docking of domestic third-party library management software.
8. Communication interface: USB or RS232, RJ45.
9. Power supply requirements: AC200V, 50Hz;
10. Power and energy consumption: 300W;
11. Overall dimensions of equipment: length * width * height: 6000mm * 400mm * 1550mm,
12. Platform size: 600mm * 400mm, 80 from the ground
