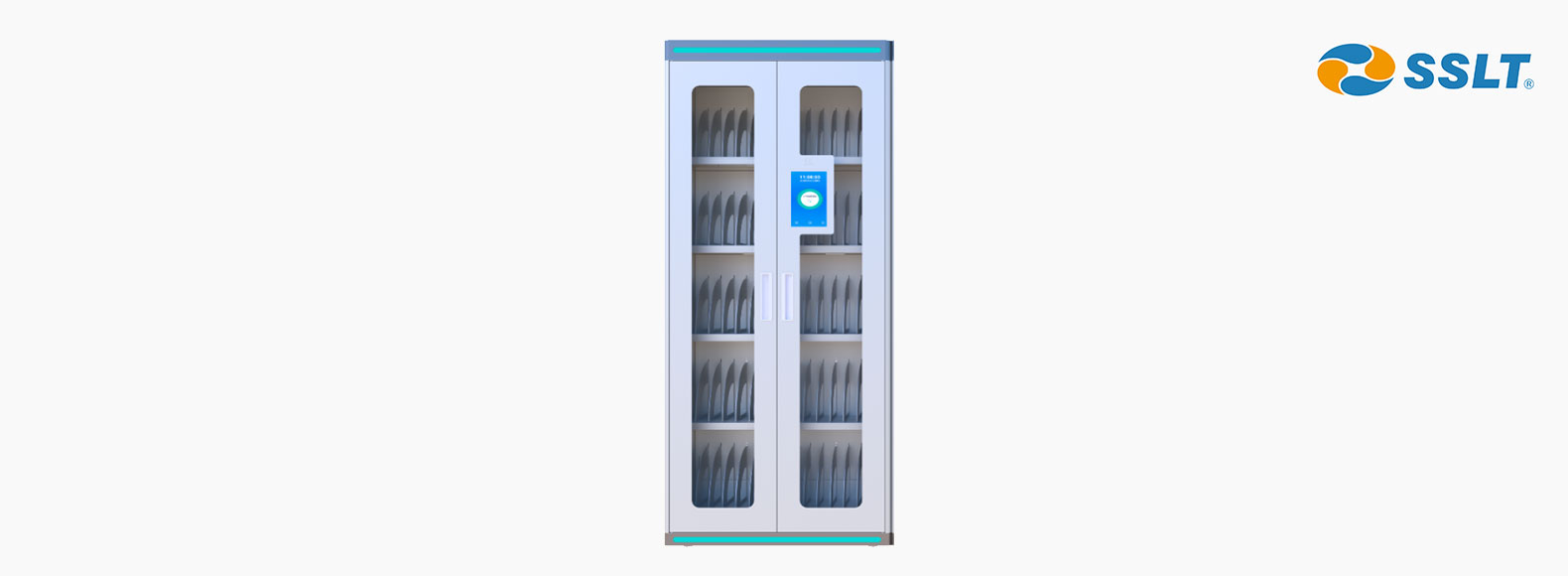

T75 UHF RFID electronic filing cabinet is mainly composed of RFID reader, antenna branch, antenna, light strip, light control board and other electrical components. The system supports EPC C1 G2 (ISO18000-6C) protocol, works in the 840~960MHz band, and uses UHF RFID technology to achieve accurate positioning of file boxes.
Business functions:
The interior of the cabinet is designed with 5 layers, the thickness of the file box is 5.0cm(can be customized), there is a partition between each file box, each layer can be placed 15 file boxes, and the cabinet is integrated with a special antenna for file positioning, which can be accurately positioned to the position of each file box, and an indicator light is installed in the corresponding position of each file box. Each layer is equipped with an infrared trigger device. When detecting an infrared trigger, the system automatically starts inventory, detects the presence of files, and reports the results to the platform. Take out operation: After the taking out instruction is issued through the platform or the operation screen, the cabinet door of the cabinet where the file box is located automatically opens, and the prompt light of the corresponding file box is on. The user only needs to take the file and close the door according to the indicator light.
Return operation: send the file return instruction through the platform or operation screen, the corresponding cabinet door will automatically open, select the empty position to return, return successfully, the light will automatically light up.

Technical features:

> The maximum output power is 30dbm, the power size is adjustable
> Accurate positioning of file box, for the thickness of the file box >=4CM to achieve positioning to the box
> Each layer is configured with infrared trigger, file retrieval and return to achieve automatic identification inventory. The inventory rate is fast, and the time required for each layer inventory is less than 3s
> Indicator guide operation
Parameter description:
1. Size: H2050*D450*L900mm
The standard spacing is 55mm, and the file box size is 50mm and below
2, cabinet material 1.0mm sheet metal spray paint
3, power input 220v AC
4, indicator light: each file box corresponding position arrangement indicator light
5, capacity: 15 single-layer, 75 single-cabinet (spacing can be customized)
6, touch one machine:
Operating system Android
Display 10.1 "LED screen
Protection class IP65
Operating temperature Temperature -20° to 60° Humidity 0 to 80%
Storage temperature -45 ° C to 85 ° C
7, RFID data collection function:
Operating frequency UHF 840~960MHz, multi-national frequency standards can be customized according to needs
The default frequency is 920 MHZ to 925MHz
Protocol standard EPC C1 GEN2/ISO18000-6C/IS018000-6B
Pinpoint every box of files
8, communication WIFI,4G(optional), wired network
9, moving mode caster (optional)
10, cabinet login method: account password, face recognition
