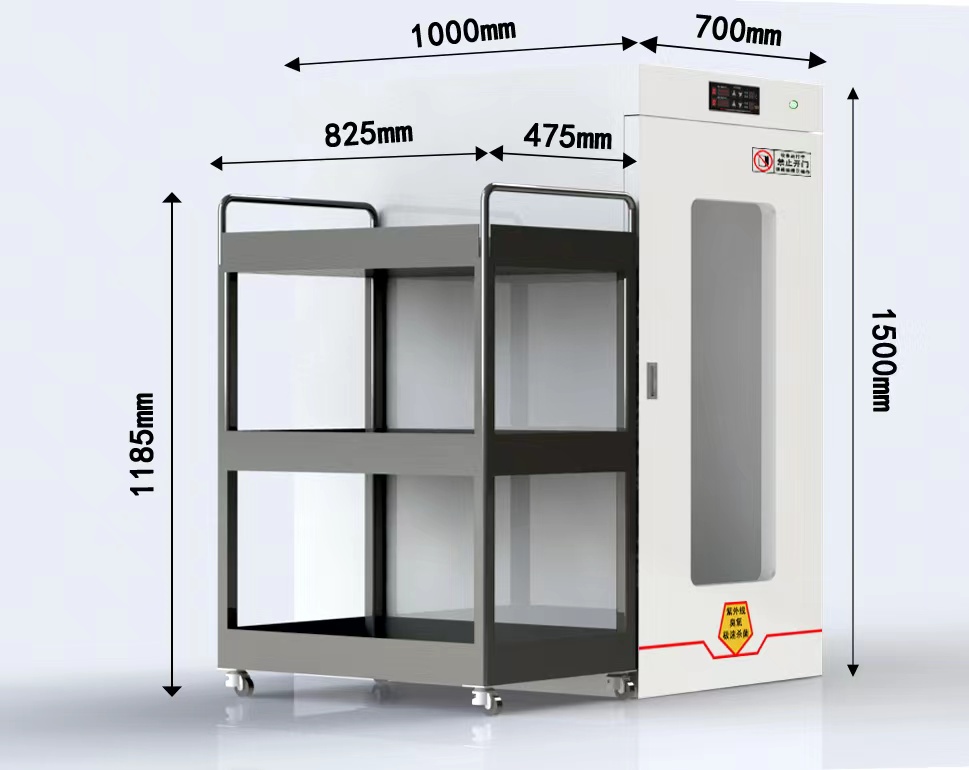

External dimensions: about 1000* width 700* height 1500mm

Hardware parameters:

1. Rated voltage: 220V-50HZ

2. Rated power: about 200W

3. Total capacity: about 900L

4. The number of ultraviolet germicidal lamps: 4 groups (multi-point layout)

5. Ozone generation: ≥1000mg/h

6. Number of book carts: 2 sets

Functional requirements:

1. The book disinfection cabinet is a cart storage type, that is, after the books are placed on the cart, the cart can be directly pushed into the disinfection bin for disinfection. After the disinfection is completed, the cart is directly pushed out, which is convenient for books to be moved at any time and saves many books. The trouble of transportation.

2. Using ultraviolet + ozone disinfection and sterilization technology. The ozone function can be used alone, and the ultraviolet function can be used alone. Two sterilization modes can also be set at the same time. Disinfect more than 300 books at a time, suitable for batch sterilization and insecticide of library books. High sterilization rate, environmental protection, high efficiency, non-toxicity, no secondary pollution, and no dead ends.

3. With a separate shortcut button for ultraviolet sterilization (10 minutes), it is convenient for librarians to use the ultraviolet sterilization function intuitively (☆).

4. In order to ensure the safety of users, when the equipment is working, the door will stop working immediately. When the device is in the open state, the work button will not be lit (☆).

5. With ozone sterilization safety mode (non-librarian operation, can not start the ozone sterilization mode normally), to protect the safety of users (☆).

6. With temperature and humidity module

7. The main body of the cabinet is designed with high-quality metal, and the surface of the cabinet is treated with anti-static plastic spraying, which has a beautiful and harmonious appearance. Among them, the cabinet door is made of anti-light radiation plexiglass (you can visually observe the operating status of the equipment).
